Basic Info

Model NO.	WD-CTL5-10W	Lamp Installation	Recessed
Warranty	2 Years	Application	Engineering, Home Furnishing, Commercial Lighting
P Rating	IP44	Certification	CCC, CE, EMC, RoHS
Trademark	WORLD-DAWN	Specification	280*47*45mm
Origin	China	HS Code	9405409000

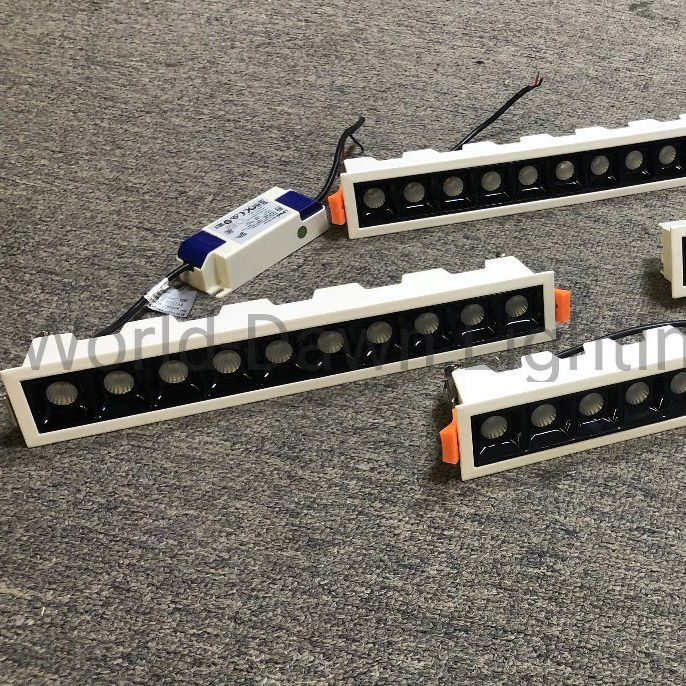

LED Recessed Linear Downlight/Spotlight

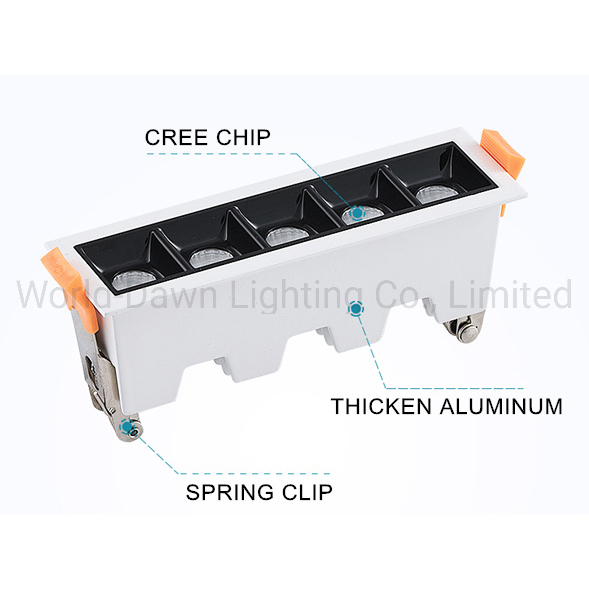

Feature
1. Thicken Aluminum can accelerate heat dissipation, expand lifespan effectively
2. CREE COB chips, high performance and long lifespan
3. High Lumen, natural luminous efficiency to return the original photochromic
4. Spring clip holders make the light to easy installation and steadiness
5. Creating atmosphere effectively, suitable for use in places that need to foil the atmosphere or highlighting.

Specification

Specification

Pic	Item No.	Power	Diameter	Hole Size	CCT	LED	Parameter
	WD-CTL1-2W	2W	43*43*45mm	38*38mm	3000K 4000K 5000K 6000K	COB	1, All the product use Isolated   85-265V Driver, full power. 2.Light Efficary: ≥80 LM/W,CRI: ≥80 3..warranty: 2 years 4.Ordinary packaging
	WD-CTL2-4W	4W	75*43*45mm	68*38mm
	WD-CTL5-10W	10W	148*47*45mm	140*38mm
	WD-CTL10-20W	20W	280*47*45mm	270*38mm
	WD-CTL15-30W	30W	415*47*45mm	405*38mm

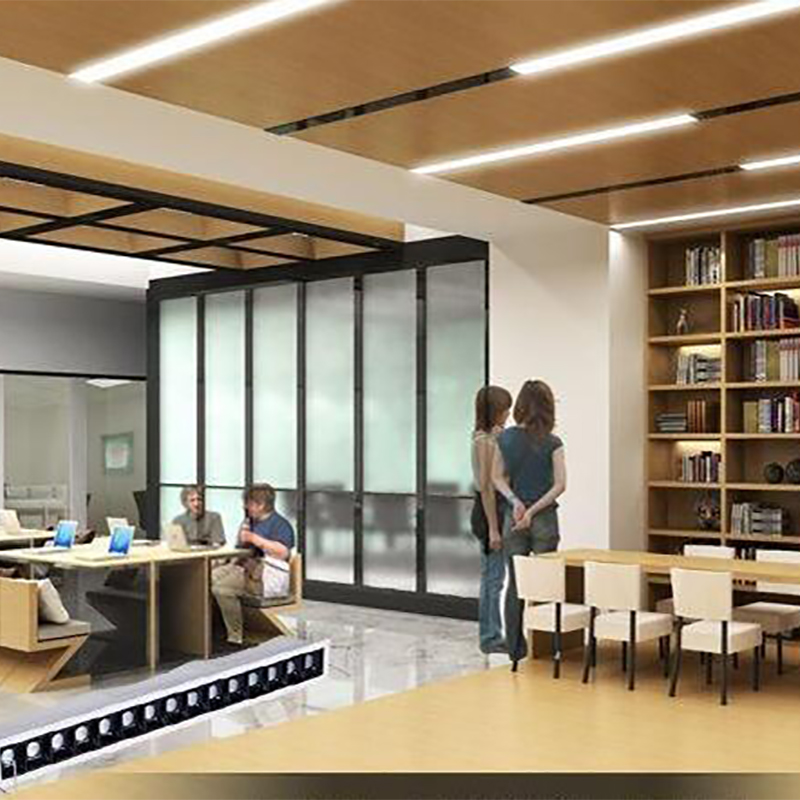

Application
Home Lighting & Commercial Lighting
Hotel, Coffee Shop, Shopping Mall
Gallery, Museum, etc...



Installition
