LED T8 & T5 Tube

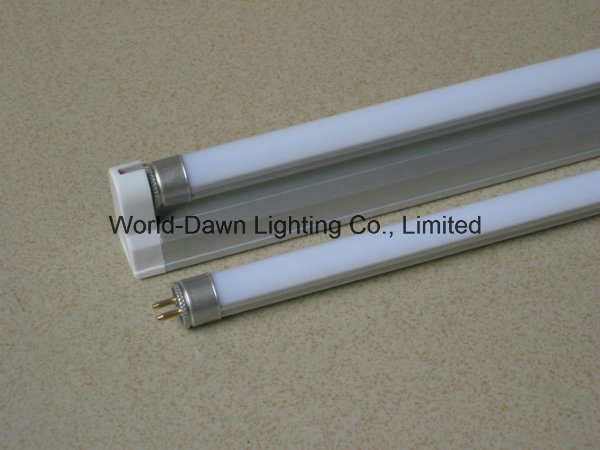

High Lumen T5 LED Tube
Model: LED T5 TUBE
Min. Order: 1 Piece
Port: Zhongshan, China
Production Capacity: 10000 PCS Per Month
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Tube Type: T5
Color Temperature: 2700-7000K
Power: 2W, 2.8W, 4.6W, 5.6W, 7W, 8W
Shape: Round
Shade Material: PC
Lamp Holder/Base: Full Range
Port: Zhongshan, China
Production Capacity: 10000 PCS Per Month
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Tube Type: T5
Color Temperature: 2700-7000K
Power: 2W, 2.8W, 4.6W, 5.6W, 7W, 8W
Shape: Round
Shade Material: PC
Lamp Holder/Base: Full Range
Description
Basic Info
Model NO.
LED T5 TUBE
Shell Type
Frosted
Lifespan
≥50000H
Warranty
3 Years
Certification
CE, RoHS, EMC, LVD, Ce, RoHS, FC
Input Voltage
220V
Fitting

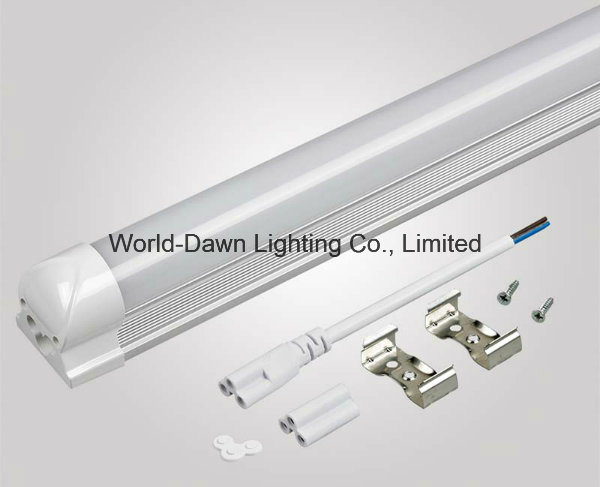

T5 Tube + Fixture, Whole Set
Beam Angle
180 Degree
Material
PC+ Aluminum
Lens Cover
Frosted, Transparent
CRI
80
PF
90
Trademark
WORLD-DAWN
Transport Package
125*20*18cm / 25PCS in Carton for 1.2 M Tube ; 65*
Specification
Dia.15, Length 287mm, 548mm, 848mm
Origin
China
HS Code
9405409000
LED Tube light , T5 Tube T8 tube light
BENEFITS:
1. Immediate power savings
2. No ballast/ starter needed
3. Easy to install
4. Low heat dissipation, increase the life time
5. Eliminates maintence and reduces costs
6. No environmentally hazardous materials
7. No warm-up time, instant-on with full light output and stable color.
APPLICATIONS:
Home lighting.
Office, workshop
Subway, train.
Undergroud garage
CAUTIONS& WARNINGS:
1. Indoor use only
2. Do notopen when it is working
3. Turn power off before inspection, installation or removal.
4. This LED tube of light voltage is not dimmable, do not use with dimmers
5. Specification is subject to change without notice
| iterm | size(MM) | power input | wattage | LED Qty | Base | LED source | cover material | color temperature | Lumens | CRI | PF |
| T5 tube+fixture | Φ15*287 | DC 12V | 2W | 39 | G5 | 3528 SMD | aluminium alloy+PC(transparent or diffusion light) | 2500-7000K | 160~184 lm | ≥80 | ≥90 |
| Φ15*548 | 4.6W | 78 | G5 | 2500-7000K | 370~420 lm | ≥80 | ≥90 | ||||
| Φ15*848 | 7W | 126 | G5 | 2500-7000K | 560~644 lm | ≥80 | ≥90 | ||||
| T5 tube+fixture | Φ15*287 | AC85-240 V | 2.8W | G5 | 3528 SMD | aluminium alloy+PC(transparent or diffusion light) | 2500-7000K | 220~260 lm | ≥80 | ≥90 | |
| Φ15*548 | 5.6W | G5 | 2500-7000K | 450~510 lm | ≥80 | ≥90 | |||||
| Φ15*848 | 8W | G5 | 2500-7000K | 640~730 lm | ≥80 | ≥90 |
