LED Panel Light
New Narrow Side Surface Mounted LED Panel Light
Model: 83-1
Min. Order / Reference FOB Price
100 Pieces US $1-2/ Piece
Port: Zhongshan, China
Transport Package: Customized Packing / Neutro-Packing
Payment Terms: L/C, T/T, Western Union, Paypal
Light Source: LED
Housing Material: Aluminum
Emitting Color: White,Warm White
Dimmable: Without Dimmable
Appearance: Round
Type: Ceiling
100 Pieces US $1-2/ Piece
Port: Zhongshan, China
Transport Package: Customized Packing / Neutro-Packing
Payment Terms: L/C, T/T, Western Union, Paypal
Light Source: LED
Housing Material: Aluminum
Emitting Color: White,Warm White
Dimmable: Without Dimmable
Appearance: Round
Type: Ceiling
Description
Basic Info
Model NO.
83-1
Base Material
Aluminum
Certification
CE, RoHS
Voltage
85V-265V
Beam Angle
120
Wattage
12W,24W,36W,50W
Trademark
World-Dawn
Specification
CE, ROHS
Origin
Guangdong
HS Code
9405409000

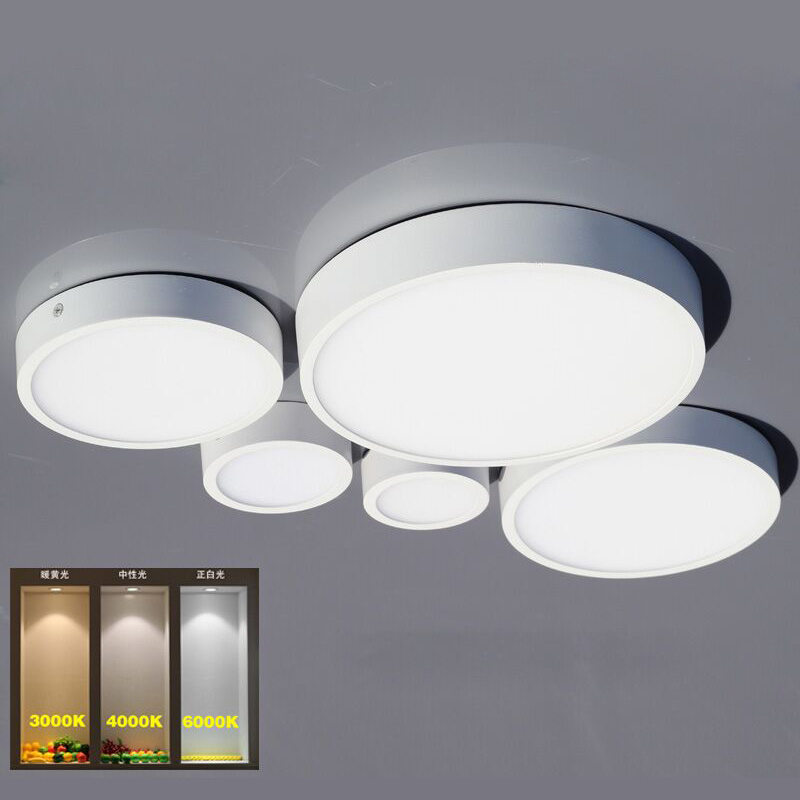

Surface Mounted LED Panel Light, small LED Panel
Model No.: 8302
Features:
- Surface Mounted LED Panel, small size to save space.
- side lighting, using reflective light leading board, no glare, eyes protecting.
- Use constant current driver, no stroboflash.
- wide voltage 85~265V, world-wide use.
- Die casting aluminum housing, good heat dissipation.
- replace downlight directly.
- PMMA Light Guide Plate, PMMA diffuser
- Shape: Round, Squar
- Wattage: 12W (others 24W, 36, 50WWalso available)
- Lumen: 80LM/W
Installation:
Note:
Note:
1. Indoor application in dry environment only.
2. Do not cover flammable materials over lamp.
3. Make sure the power is off when processing installation.
4. Professional maintenance personnel is required if repair is needed.
Applications:
Hotels.
Conference / Meeting rooms.
Factories & Offices.
Commercial Purposes.
Residential / Institution Buildings.
Schools, Colleges & Universities.
Supermarket Lighting.
| Item No.: | 8302 |
| Input voltage: | AC220-240V |
| LED chip: | Epistar -SMD2835 |
| LED Qty: | 100 Pieces |
| Power: | 12W |
| CRI: | ≥80 |
| Protection Grade: | IP44 |

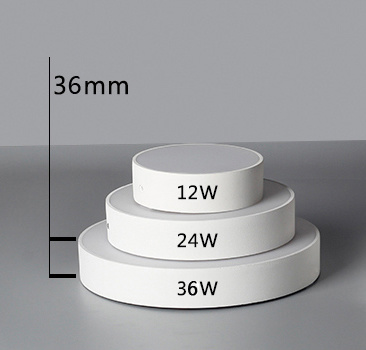

| Lamp Size: | Φ 120mm*H36mm |
| Hole size: | N/A |
| Beam Angle: | 120° |
| Harmonic : | ≤ 10% |
| Power factor: | ≥ 0.9 |
| Warranty | 2 years |
| Luminous Flux: |
80lm/wattage Warm white 85lm/wattage Pure white |
| Color temperature: |
2700-3000K Warm white 6000-6500K Pure White |
| Housing Material: | Die-casting Aluminum |
| Base Material: | PMMA LGP,PMMA Diffuser |
| Shape | Round |
| Interface: | Terminal |
| Dimming: | Optional(yes/no) |
| Installation: | Embedded |
| Storage temperature: | -20 °C to +60 °C |
| Working temperature: | -20 °C to +40 °C |
| Life: | > 50,000 hours |
