LED Panel Light
2016 New Super Slim LED Panel Light (WD-New-Slim-S-12W)
Model: WD-New-Slim-S- 12W
Min. Order: 100 Pieces
Port: Zhongshan, China
Transport Package: Customized Packing / Neutro-Packing
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Light Source: LED
Housing Material: Aluminum
Emitting Color: White,Warm White
Dimmable: Without Dimmable
Appearance: Round/Square
Type: Ceiling
Port: Zhongshan, China
Transport Package: Customized Packing / Neutro-Packing
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Light Source: LED
Housing Material: Aluminum
Emitting Color: White,Warm White
Dimmable: Without Dimmable
Appearance: Round/Square
Type: Ceiling
Description
Basic Info
Model NO.
WD-New-Slim-S- 12W
Base Material
Plastic
Certification
CE, RoHS
Voltage
100-240V
Beam Angle
180°
Trademark
WORLD-DAWN
Specification
CE, ROHS
Origin
China
HS Code
9405409000
Features:
Super thin, small size to save space.
side lighting, using reflective light leading board, no glare, eyes protecting.
Use constant current driver, no stroboflash.
wide voltage 100~245V, world-wide use.
Die casting aluminum housing, good heat dissipation.
replace downlight directly.
PMMA Light Guide Plate, PMMA diffuser
Shape: Round, Square
Wattage: 12W (others 16W, 22W, 30W also available)
Lumen: can reach 120lm/W
| Item No.: | WD-New-Slim-R-12W |
| Input voltage: | AC100-245V |
| LED chip: | Epistar -SMD4014 |
| LED Qty: | 30 Pieces |
| Power: | 12W |
| CRI: | ≥80 |
| Protection Grade: | IP44 |
| Lamp Size: | 120×120mm *h15mm, |
| Hole size: | 105×105mm |
| Beam Angle: | 180° |
| Harmonic : | ≤ 10% |
| Power factor: | ≥ 0.9 |
| Warranty | 2 years |
| Luminous Flux: |
80lm/wattage Warm white 85lm/wattage Pure white |
| Color temperature: |
2700-3000K Warm white 6000-6500K Pure White |
| Housing Material: | Die-casting Aluminum |
| Base Material: | PMMA LGP,PMMA Diffuser |
| Shape | Round / Square |
| Interface: | Terminal |
| Dimming: | unavailable |
| Installation: | Embedded |
| Storage temperature: | -20 °C to +60 °C |
| Working temperature: | -20 °C to +40 °C |
| Life: | > 50,000 hours |

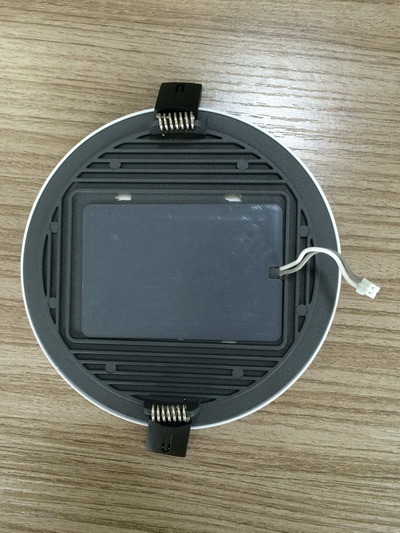

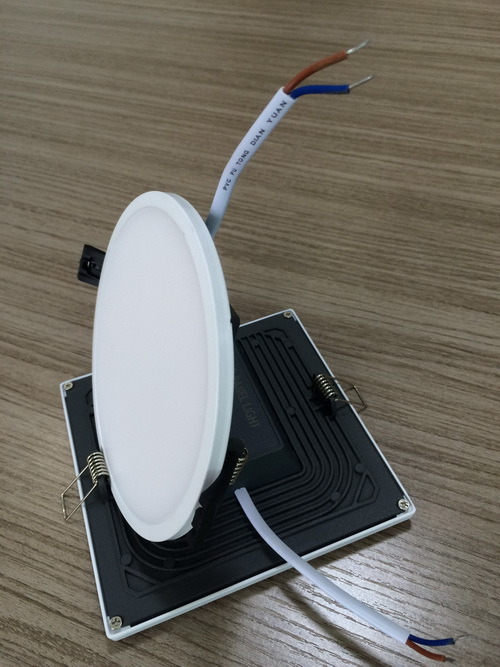

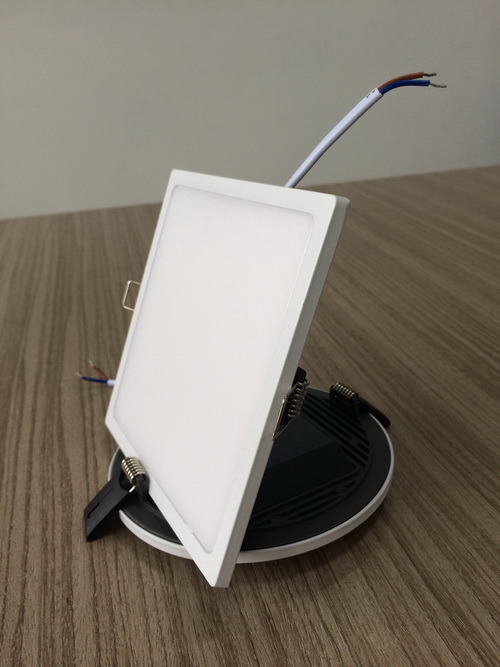

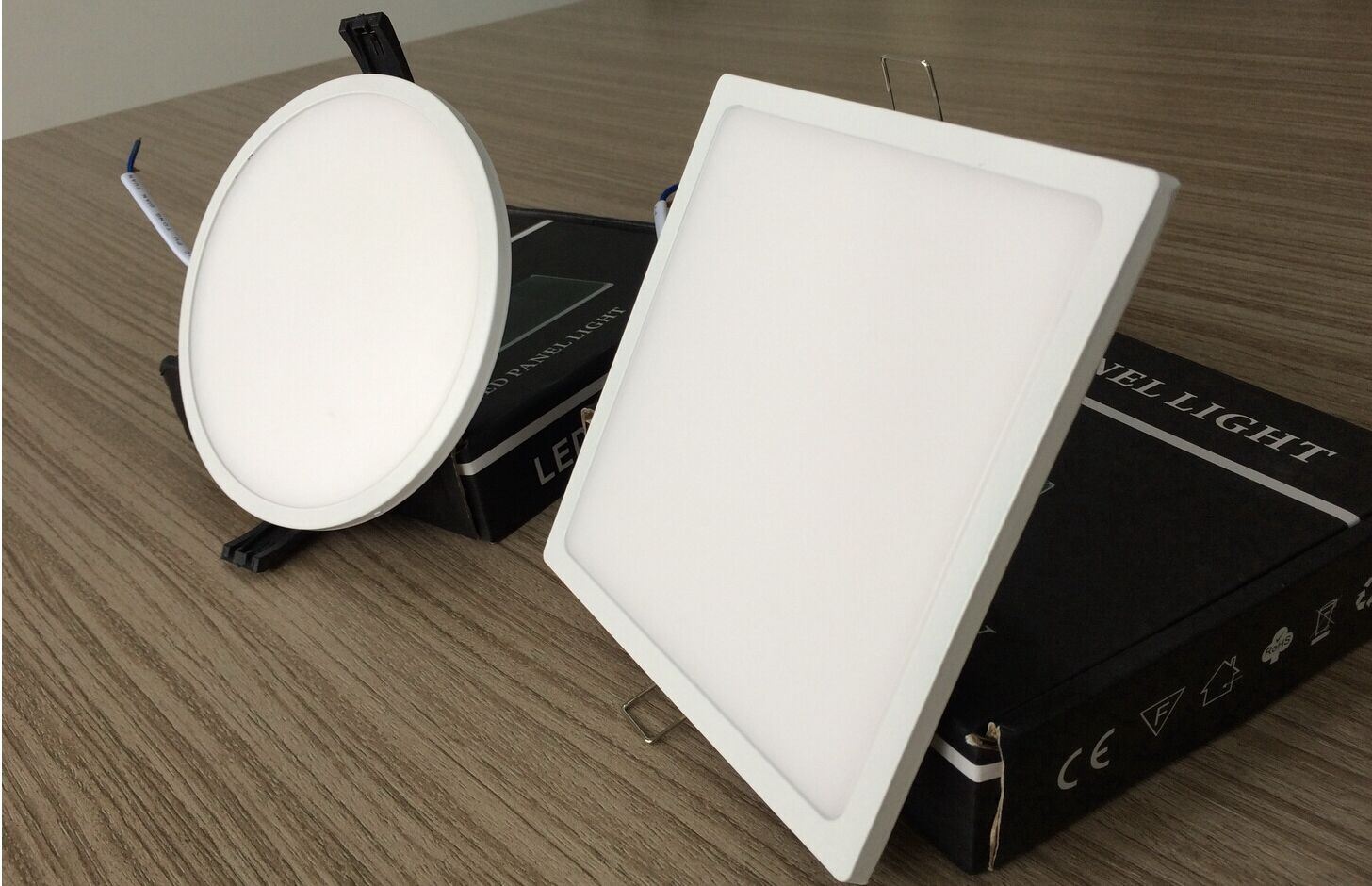

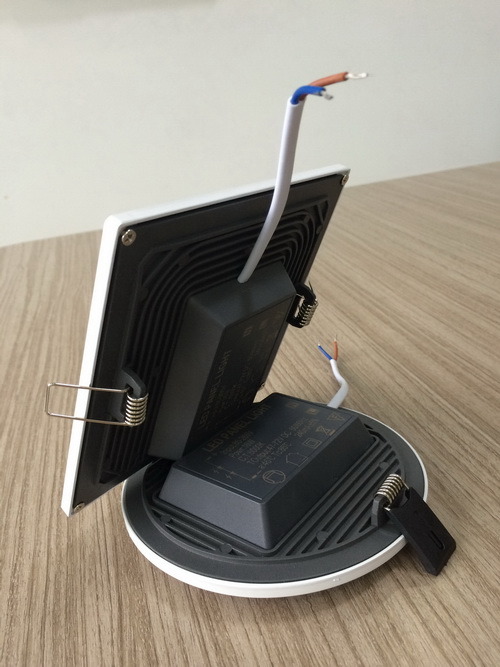

Effect Picture
