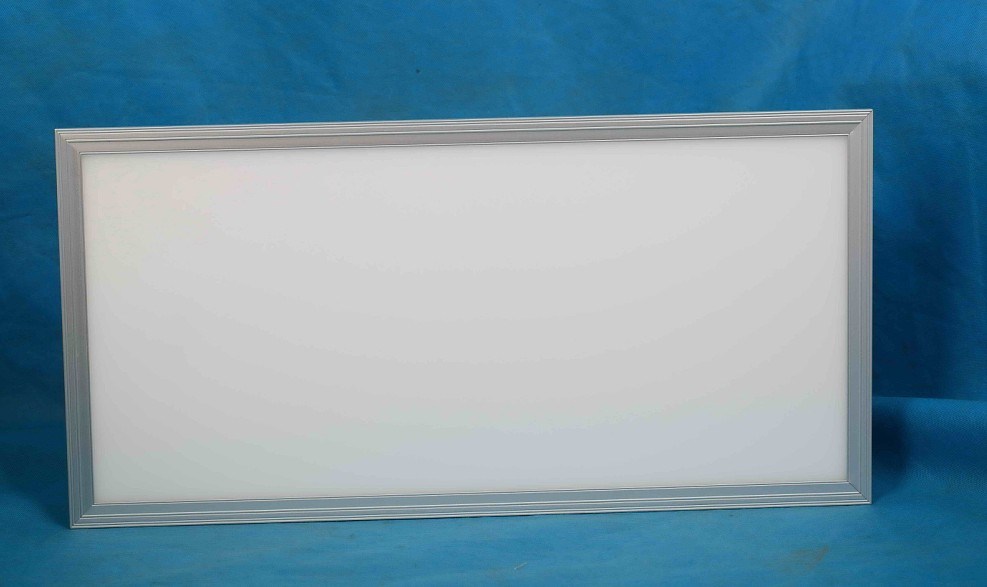

LED Panel Light


Character Description
1, High brightness SMD LED as light source;
2, Superior aluminum alloy dissipation material, artistic appearance and good dissipation.
3, Energy Saving, at the same brightness condition, it saves 70% energy than ordinary lamps.
4, Excellent thermal management and choice aluminum, length the life span of the light
5, No stroboscopic, LED constant current design efficiently reduces the light decay.
6, Quickly start and the light is natural and soft
7. Indoor use only.
8, Easy to install. Can replace the traditional lighting directly.
Suitable Use Place
Office lighting, speciality stores lighting, business lobby lighting and industry lighting, library lighting and Museum lighting.
| Spec | Item Number | Power(W) | Input(V) | LED (PCS) |
| 600*600*10mm | WD-SPL6060-36 | 36W | AC100-240 | 192 |
| WD-SPL6060-48 | 48W | AC100-277 | 242 | |
| WD-SPL6060-54 | 54W | AC100-277 | 288 | |
| 300*1200*10mm | WD-SPL12030-36 | 36W | AC100-240 | 192 |
| WD-SPL12030-48 | 48W | AC100-277 | 242 | |
| WD-SPL312030-54 | 54W | AC100-277 | 288 | |
| 620*620*10mm | WD-SPL6262-54 | 54W | AC100-277 | 288 |
| WD-SPL6262-48 | 48W | AC100-277 | 242 | |
| WD-SPL6262-36 | 36-40W | AC100-240 | 192 | |
| 300*600*10mm | WD-SPL6030-36 | 36W | AC100-240 | 192 |
| WD-SPL6030-18 | 18W | AC100-277 | 96 | |
| 300*300*10mm | WD-SPL3030-18 | 18W | AC100-277 | 96 |
| 600*1200*10mm | WD-SPL12060-72 | 72W | AC100-240 | 384 |
