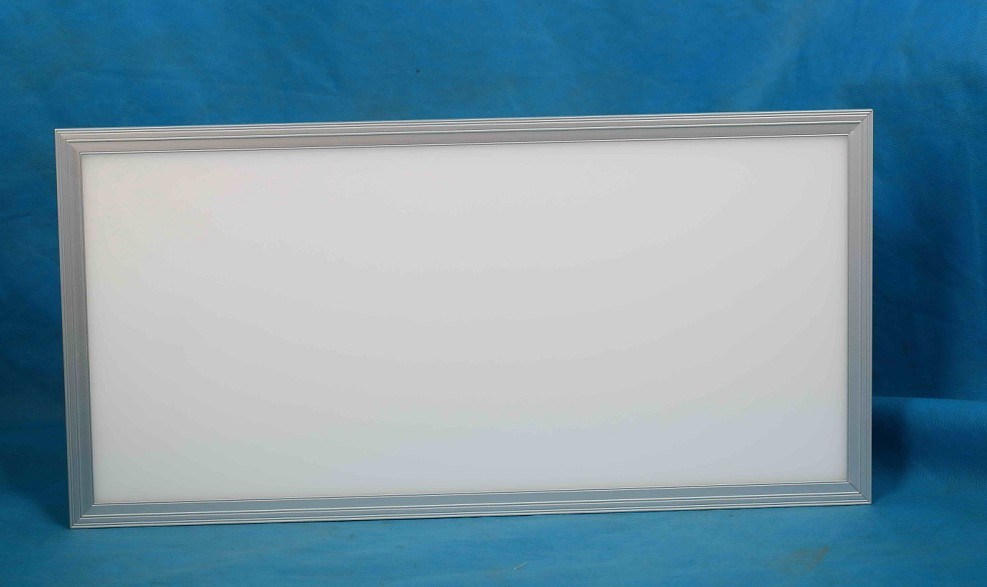

LED Panel Light
Port: Zhongshan, China
Production Capacity: 5000 PCS/ Month
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Light Source: LED
Housing Material: Glass
Emitting Color: RGBW
Dimmable: With Dimmable
Appearance: Square
Type: Hanging
Basic Info
Basic Info.
Model No.: PF1104-LED44
Light Source: LED
Appearance: Square
Type: Hanging
Emitting Color: RGBW
Certification: CE
Housing Material: Glass
Base Material: Metal
Voltage: 12V
Beam Angle: 60°
Export Markets: Global
Additional Info.
Trademark: NM
Packing: Export Package
Standard: 300X1195X9.2MM
Origin: China
HS Code: 9405409000
Production Capacity: 5000 PCS/ Month
LED panel light
Iterm No.: PF1104-LED44
Power: 44W
Size: 300X1195X9.2MM
Cover Material: Aluminum Alloy + PMMA
Luminous Output (lm): 2400lm
LED Type: SMD5630
LED Qty: 1000PCS
Beam angle: 113°
Lifespan: More than 25000 hours
Color Temp (CCT): 6000K
Color Rendering Index (Ra): More than 70
Operation environment: -20 ~ +40
Storage Temperature: -30 ~ +70
Voltage/Frequency: 90 ~ 264VAC 50/60Hz/,
Input Voltage: DC27V
Power factor: More than 0.95
| Spec | Item Number | Power(W) | Input(V) | LED (PCS) |
| 600*600*10mm | WD-SPL6060-36 | 36W | AC100-240 | 192 |
| WD-SPL6060-48 | 48W | AC100-277 | 242 | |
| WD-SPL6060-54 | 54W | AC100-277 | 288 | |
| 300*1200*10mm | WD-SPL12030-36 | 36W | AC100-240 | 192 |
| WD-SPL12030-48 | 48W | AC100-277 | 242 | |
| WD-SPL312030-54 | 54W | AC100-277 | 288 | |
| 620*620*10mm | WD-SPL6262-54 | 54W | AC100-277 | 288 |
| WD-SPL6262-48 | 48W | AC100-277 | 242 | |
| WD-SPL6262-36 | 36-40W | AC100-240 | 192 | |
| 300*600*10mm | WD-SPL6030-36 | 36W | AC100-240 | 192 |
| WD-SPL6030-18 | 18W | AC100-277 | 96 | |
| 300*300*10mm | WD-SPL3030-18 | 18W | AC100-277 | 96 |
| 600*1200*10mm | WD-SPL12060-72 | 72W | AC100-240 | 384 |
Character Description
1, High brightness SMD LED as light source;
2, Superior aluminum alloy dissipation material, artistic appearance and good dissipation.
3, Energy Saving, at the same brightness condition, it saves 70% energy than ordinary lamps.
4, Excellent thermal management and choice aluminum, length the life span of the light
5, No stroboscopic, LED constant current design efficiently reduces the light decay.
6, Quickly start and the light is natural and soft
7. Indoor use only.
8, Easy to install. Can replace the traditional lighting directly.
Suitable Use Place
Office lighting, speciality stores lighting, business lobby lighting and industry lighting, library lighting and Museum lighting.
