Product Description
(1). Constant Current Module.
(2). 3 LED/Module, 0.72W/PC. Material: ABS, NOT PC.
(3). Size: 84*15mm
(4). Epistar SMD 5050 LED as the light source.
(5). Warranty: 5 years (6). Certificate: UL, TUV, CE, RoHS

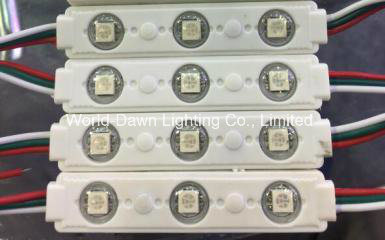

5050 Waterproof 3 LED Module
SMD LED Module/ LED Module/ LED Sign Module/ LED Module Light/ High Power LED/ LED Light/ LED Lighting/ LED Module Lamp/ Modulos LED
Feature:

1. Waterproof: IP67
2. SMD5050 LED as lighting source
3.98% transmittance lens,
4. Injection molding process
5. Constant Current Technology (CCT)
6. The exposed Aluminum plate for heat dissipation
7. Energy saving, Long life span

Application:

1. Channel letter lighting
2. Commercial standing lighting
3. Letter background lighting
4. Light box lighting
5. Logo lighting
6. Line/shape lighting


1SMD Type SMD 5050
2Power(Single module) 0.72W(Max)
3Brightness 22-24 LM/SMD
4Max number(PCS) 20(MAX)
5IP Level IP68
6 Cover color & materialABS
7Drive modeConstant Current Drive
8Working temperature-20~+40o C
9Stock temperature-40~+60o C
10Life-span5year/50000H
11Weight(single module)11± 0.5g
