LED Strip Light

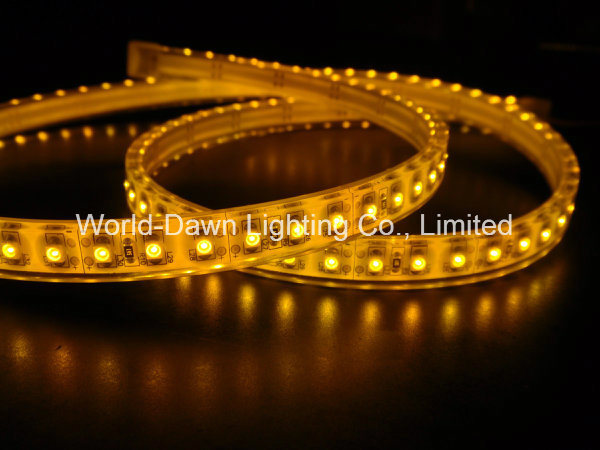

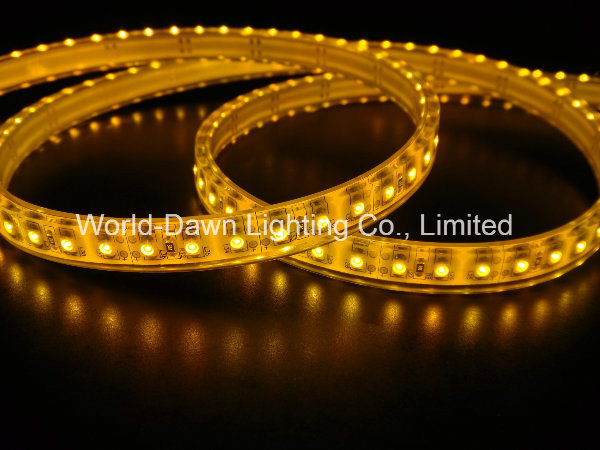

High Brightness Flexible LED Strip with Ce Approval for Yellow Color
Model:
Min. Order:20 Meters
Port:Zhongshan, China
Production Capacity:100000 Meters/ Per Month
Payment Terms:L/C, T/T, Western Union, Paypal
Certification:RoHS, CE
Emitting Color:Yellow
Voltage:DC12V/DC24V
Usage:Festival, Landscaping, Home, Background Light
Lead Time:in 7 Days
Certificate:Ce, RoHS
Port:Zhongshan, China
Production Capacity:100000 Meters/ Per Month
Payment Terms:L/C, T/T, Western Union, Paypal
Certification:RoHS, CE
Emitting Color:Yellow
Voltage:DC12V/DC24V
Usage:Festival, Landscaping, Home, Background Light
Lead Time:in 7 Days
Certificate:Ce, RoHS
Hot Items
Description
Basic Info
Color
Red
Life(H)
50000 Hours
Trademark
WORLD-DAWN
Transport Package
5m/Roll, 1 Roll/Bag
Specification
1000x10x2.2mm
Origin
China
HS Code
9405409000
LED strip light, Yellow strip LED, flexible strip light
Product name: LEDYellow Strip Light
LED type: SMD 5050 SMD3528 , SMD2835, etc.
LED Qty: 60 LEDs/ per meter / 120LEDs/ per meter
Size: 1000X10X2.2MM
Voltage: DC12V/DC24V
Beam angle: 120
Color: Yellow
Packing: 5M/Roll, 1 Roll/bag
Total output lumens(LM/W): Red=18.75, Yellow=18.75, Blue=12.5, Green=50, White=62.5, Warm white=50
Encapsulation type:
Naked(NK) IP00
Inside the silicon tube IP56
Filling glue + back with 3M tape, IP44
Filling Glue + inside the silicon tube, IP67
LED strip light Apllications:
1. Car decoration
2. Architectural decorative lighting
3. Archway, canopy and bridge edge lighting
4. Amusement park, theater and aircraft cabin mood lighting
5. Emergency hallway lighting
6. Auditorium walkway lighting
7. Stairway accent lighting
8. Concealed lighting
9. Backlighting for signage letters
10. Channel letter lighting
11. Emergency exit path lighting
12. Cove lighting
| Item | LED Size | LED Qty/ per meter(PC) | Electric current | Voltage | Wattage/ per meter | Beam angle | Size | Packing size |
| WDSMD-3528-30 | SMD3528 | 30 | 0.2A | DC 12V | 2.4W | 120° | 1000X8X2.2mm | 5M / per reel |
| WDSMD-3528-60 | SMD3528 | 60 | 0.4A | DC 12V | 4.8W | 120° | 1000X8X2.2mm | 5M / per rell |
| WDSMD-3528-96 | SMD3528 | 96 | 0.64A | DC 12V | 7.6W | 120° | 1000X8X2.2mm | 5M / per rell |
| WDSMD-3528-120 | SMD3528 | 120 | 0.8A | DC 12V | 9.6W | 120° | 1000X8X2.2mm | 5M / per rell |
| WDSMD-5050-30 | SMD5050 | 30 | 0.6A | DC 12V | 7.2W | 120° | 1000X10X2.2mm | 5M / per rell |
| WDSMD-5050-60 | SMD5050 | 60 | 1.2A | DC 12V | 14.4W | 120° | 1000X10X2.2mm | 5M / per rell |
| WD-SMD5050-30 RGB(full color chasing) | SMD5050 | 30 | 1.94A | DC 5V | 9.7W | 120° | 1000X10X2.2mm | 5M / per rell |
| WDSMD-3528-240 | SMD3528 | 240 | 0.8A | DC 24V | 19.2W | 120° | 1000X14X2.2mm | 5M / per rell |
| WDSMD-5050-120 | SMD5050 | 120 | 1.2A | DC 24V | 28.8W | 120° | 1000X20X2.2mm | 5M / per rell |
| Red , Blue , Yellow, Green, Day white, Warm white | ||||||||
