Basic Info.
Model NO.: WD-SMD2835-60-12V
IP Rating: IP68
Certification: CE, RoHS
Emitting Color: Cool White & Warm White
Usage: Festival, Landscaping, Commercial, Home
Export Markets: Global
Additional Info.
Packing: 5m/Roll, 1 Roll/ Bag, 24 Bags/CTN
Origin: China
HS Code: 9405409000
Production Capacity: 100000 Meters/ Per Month

Features:

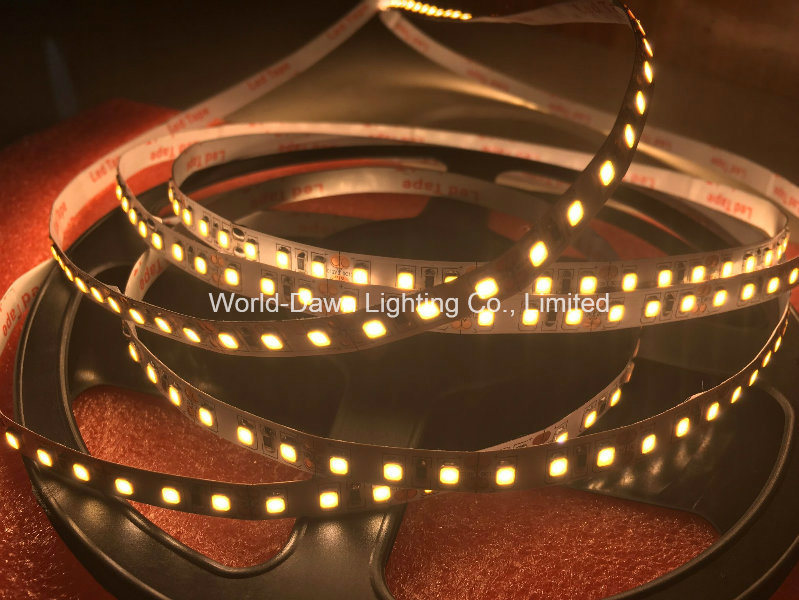

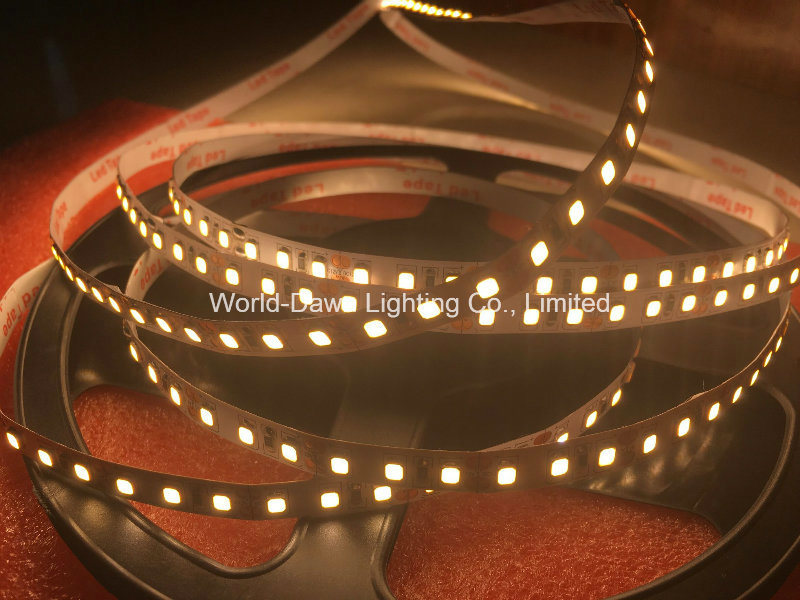

1. SMD2835LED as lighting sources, white130-150lm/watt
2. Input voltage: 12V
3. Every 3-LED are cuttable for 12V strips, 6-LED are cuttable for 24V strips.
4. With 3M Tape on the backside
5. Blister packing or Independent packing available.

Applications:
1) Architectural decorative lighting
2) Archway, canopy and bridge edge lighting
3) Amusement park, theater and aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Emergency exit path lighting
11) Cove lighting

Light Source2835SMD LED White
LED Quantity 60 LEDs / Meter
Beam Angle120°
LED Color Warm White/ Pure White
LED Lifetime>50, 000hrs
PCB ColorWhite / Yellow/Black
Mechanical Characteristics:
Method of InstallationEasy to install by the 3M tape on the PCB back
Dimension5000*12* 1.5 MM
Waterproof typeNonwaterproof / Drop glue waterproof / Silicone tube waterproof
Package: 5 meter /roll
Electrical Characteristics:
Wattage10.8W/M
Input VoltageDC 12/24V
Withstand voltage3000V of a minute
Temperature Range:
Ambient Temperature-40° C to 50° C
Working Temperatureless than 50° C at room temperature 25° C
Product Features:
Energy SavingsSaving 50%-70% energy
Long LastingMore than 50, 000 hours working lifetime
Eco-friendlyNo UV or RF interference, no Mercury or Lead
Main materialsPCB(ROLLED ANNEAL Copper Foil)+LED(EPISTAR)
Certification RoHS and CE
MoreEach unif of 3 LEDs can be cut of at regular segment without damage
