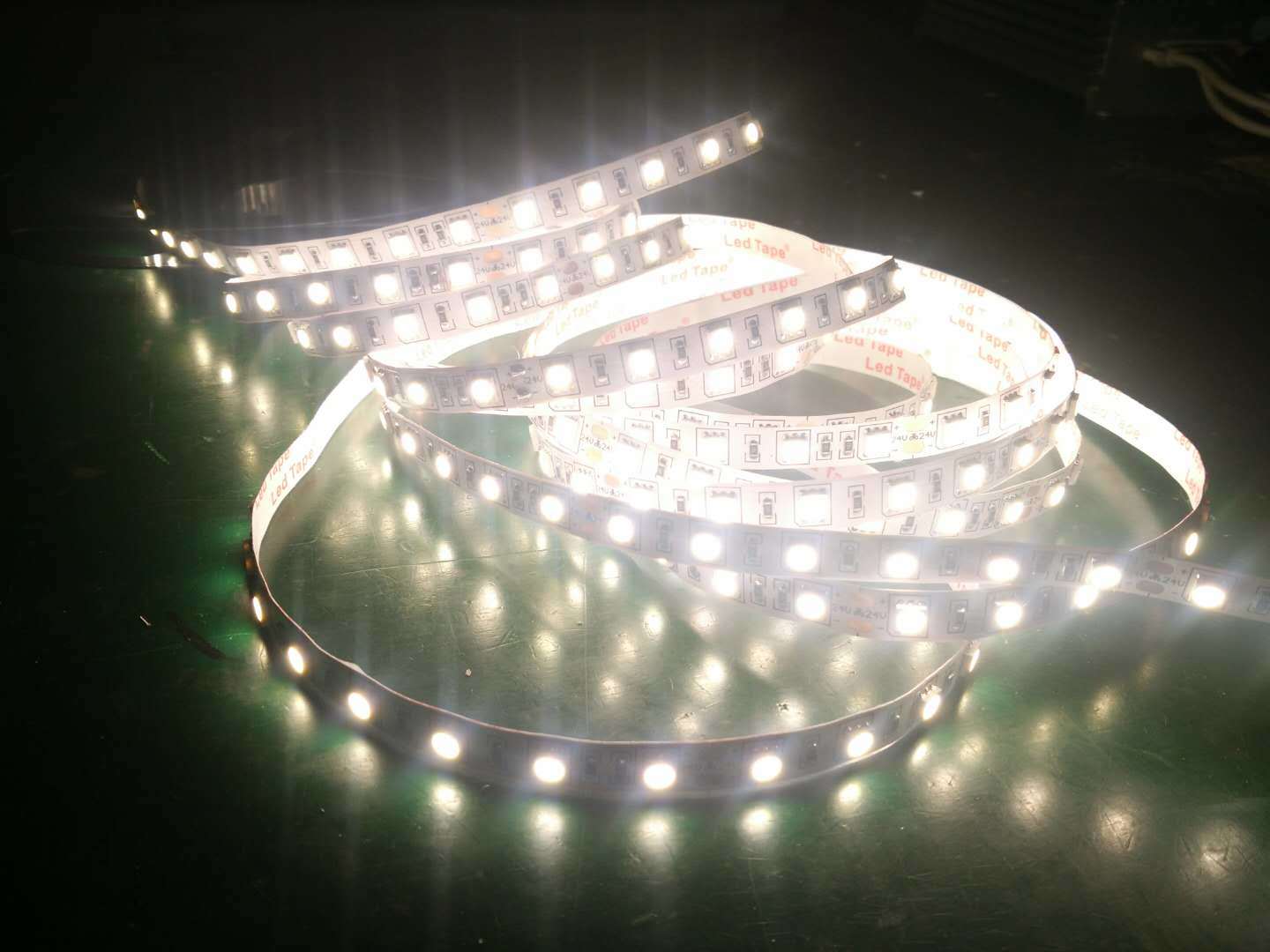

Product name: LED strip light
LED type: SMD 3528, SMD5050, SMD2835, SMD 3014, SMD5730 etc.
LED Qty: 30/ 60/ 120 LEDs/ per meter
Size: 1000X8X2.2MM; 1000X10X2.2 mm
Voltage: DC12V/DC24V
Beam angle: 120
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Packing: 5M/Roll, 1 Roll/bag
Total output lumens(LM/W): Red=18.75, Yellow=18.75, Blue=12.5, Green=50, White=62.5, Warm white=50

Encapsulation type:
Naked(NK) ,  IP00/ IP20
inside the silicion tube ,  IP56
One side filling glue another side ahere 3M tape, IP44
Filling Glue +inside the silicion tube , IP65

Applications:
1) Architectural decorative lighting
2) Archway, canopy and bridge edge lighting
3) Amusement park, theater and aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Emergency exit path lighting
11) Cove lighting

Light Source5730 SMD LED White
LED Quantity 60 LEDs / Meter
Beam Angle120°
LED Color Warm White/ Pure White
LED Lifetime>50, 000hrs
PCB ColorWhite / Yellow/Black
Mechanical Characteristics:
Method of InstallationEasy to install by the 3M tape on the PCB back
Dimension5000*12* 1.5 MM
Waterproof typeNonwaterproof / Drop glue waterproof / Silicone tube waterproof
Package: 5 meter /roll
Electrical Characteristics:
Wattage12W/M
Input VoltageDC 12/24V
Withstand voltage3000V of a minute
Temperature Range:
Ambient Temperature-40° C to 50° C
Working Temperatureless than 50° C at room temperature 25° C
Product Features:
Energy SavingsSaving 50%-70% energy
Long LastingMore than 50, 000 hours working lifetime
Eco-friendlyNo UV or RF interference, no Mercury or Lead
Main materialsPCB(ROLLED ANNEAL Copper Foil)+LED(EPISTAR)
Certification RoHS and CE
