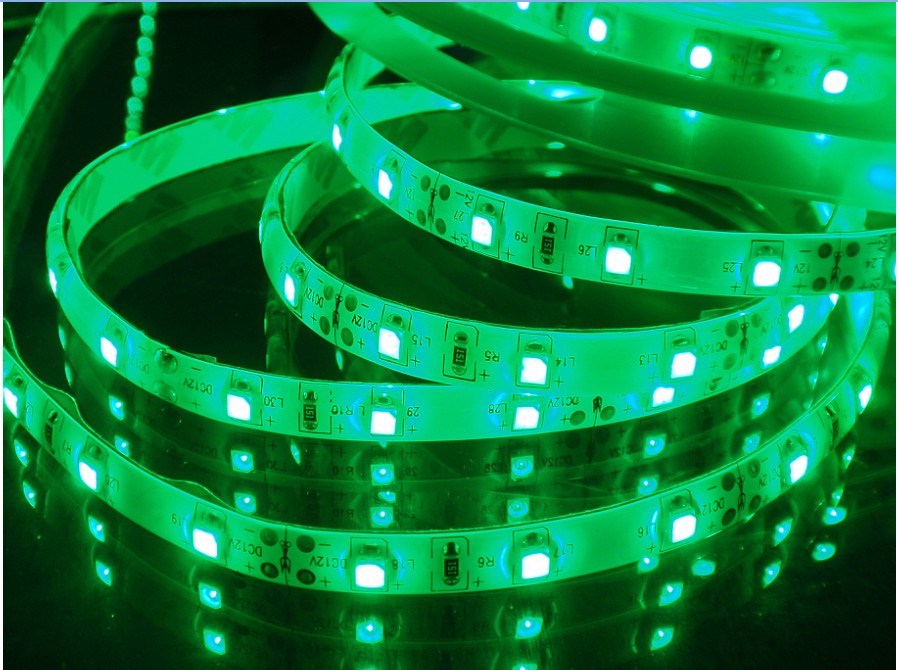

Product name: LED strip light
LED type: SMD 3528 / 5050
LED Qty: 120 LEDs/ per meter
Size: 1000X8X2.2MM, 1000x10x2.2mm
Voltage: DC12V/DC24V
Beam angle: 120
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Packing: 5M/Roll, 1 Roll/bag
Total output lumens(LM/W): Red=18.75, Yellow=18.75, Blue=12.5, Green=50, White=62.5, Warm white=50

Encapsulation type:
Naked(NK) IP00
Waterproof tube(PC) IP56
One side filling glue another side ahere 3M tape, IP44
Full waterproof, PC+PU, IP68

Features:
Three LED bulbs to one section of the soft PCB, with double-sided tapes on the back for the paste, small size and easy to install
Standard length: 5M/ per roll
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Voltage: DC12V/DC24V/AC110V/220V
Apply to Signing the figure and route advertising

Item	LED Size	LED Qty/ per meter(PC)	Electric current	Voltage	Wattage/ per meter	Beam angle	Size	Packing size
WDSMD-3528-30	SMD3528	30	0.2A	DC 12V	2.4W	120°	1000X8X2.2mm	5M / per reel
WDSMD-3528-60	SMD3528	60	0.4A	DC 12V	4.8W	120°	1000X8X2.2mm	5M / per rell
WDSMD-3528-96	SMD3528	96	0.64A	DC 12V	7.6W	120°	1000X8X2.2mm	5M / per rell
WDSMD-3528-120	SMD3528	120	0.8A	DC 12V	9.6W	120°	1000X8X2.2mm	5M / per rell
WDSMD-5050-30	SMD5050	30	0.6A	DC 12V	7.2W	120°	1000X10X2.2mm	5M / per rell
WDSMD-5050-60	SMD5050	60	1.2A	DC 12V	14.4W	120°	1000X10X2.2mm	5M / per rell
WD-SMD5050-30 RGB(full color chasing)	SMD5050	30	1.94A	DC 5V	9.7W	120°	1000X10X2.2mm	5M / per rell
WDSMD-3528-240	SMD3528	240	0.8A	DC 24V	19.2W	120°	1000X14X2.2mm	5M / per rell
WDSMD-5050-120	SMD5050	120	1.2A	DC 24V	28.8W	120°	1000X20X2.2mm	5M / per rell
Red  ,     Blue ,     Yellow,   Green,    Day white,  Warm white
