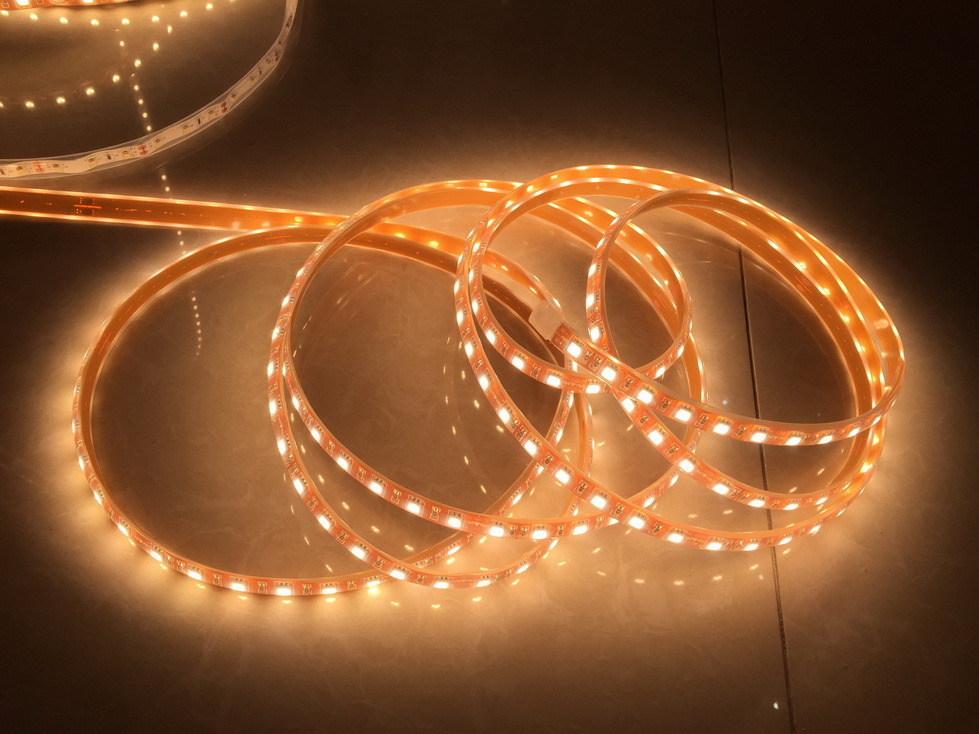

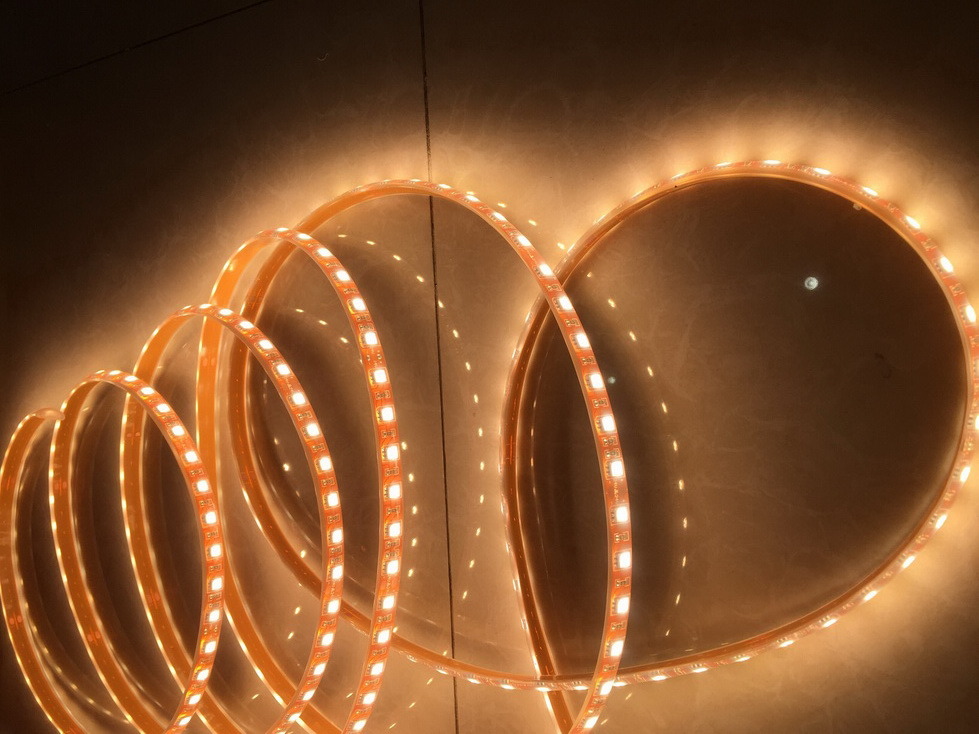

Product name: LED strip light
LED type: SMD 3528/ SMD5050
LED Qty: 60 /120LEDs/ per meter
Size: 1000X8X2.2MM, 1000X10X2.2mm
Voltage: DC12V/DC24V
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Packing: 5M/Roll, 1 Roll/bag
Total output lumens(LM/W): Red=18.75, Yellow=18.75, Blue=12.5, Green=50, White=62.5, Warm white=50

Encapsulation type:
Naked(NK) IP00
Waterproof tube(PC) IP56
One side filling glue another side ahere 3M tape, IP44
Full waterproof, PC+PU, IP68

Features:
Three LED bulbs to one section of the soft PCB, with double-sided tapes on the back for the paste, small size and easy to install
Standard length: 5M/ per roll
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Voltage: DC12V/DC24V/AC110V/220V
Apply to Signing the figure and route advertising

Application of LED Strip:
The product use for indoor lighting, shopping mall, super, market, showroom, club, store, hotel, restaurant, school, library, art gallery, museum, office building, home decoration. Replacement bulbs for general lighting, especially for museums, art galleries, cosmetic counters where UV or IR radiation is undesirable

Item	LED Size	LED Qty/ per meter(PC)	Electric current	Voltage	Wattage/ per meter	Beam angle	Size	Packing size
WDSMD-3528-30	SMD3528	30	0.2A	DC 12V	2.4W	120°	1000X8X2.2mm	5M / per reel
WDSMD-3528-60	SMD3528	60	0.4A	DC 12V	4.8W	120°	1000X8X2.2mm	5M / per rell
WDSMD-3528-96	SMD3528	96	0.64A	DC 12V	7.6W	120°	1000X8X2.2mm	5M / per rell
WDSMD-3528-120	SMD3528	120	0.8A	DC 12V	9.6W	120°	1000X8X2.2mm	5M / per rell
WDSMD-5050-30	SMD5050	30	0.6A	DC 12V	7.2W	120°	1000X10X2.2mm	5M / per rell
WDSMD-5050-60	SMD5050	60	1.2A	DC 12V	14.4W	120°	1000X10X2.2mm	5M / per rell
WD-SMD5050-30 RGB(full color chasing)	SMD5050	30	1.94A	DC 5V	9.7W	120°	1000X10X2.2mm	5M / per rell
WDSMD-3528-240	SMD3528	240	0.8A	DC 24V	19.2W	120°	1000X14X2.2mm	5M / per rell
WDSMD-5050-120	SMD5050	120	1.2A	DC 24V	28.8W	120°	1000X20X2.2mm	5M / per rell
Red  ,         Blue,         Yellow,     Green,       Day white,   Warm white
