LED Panel Light

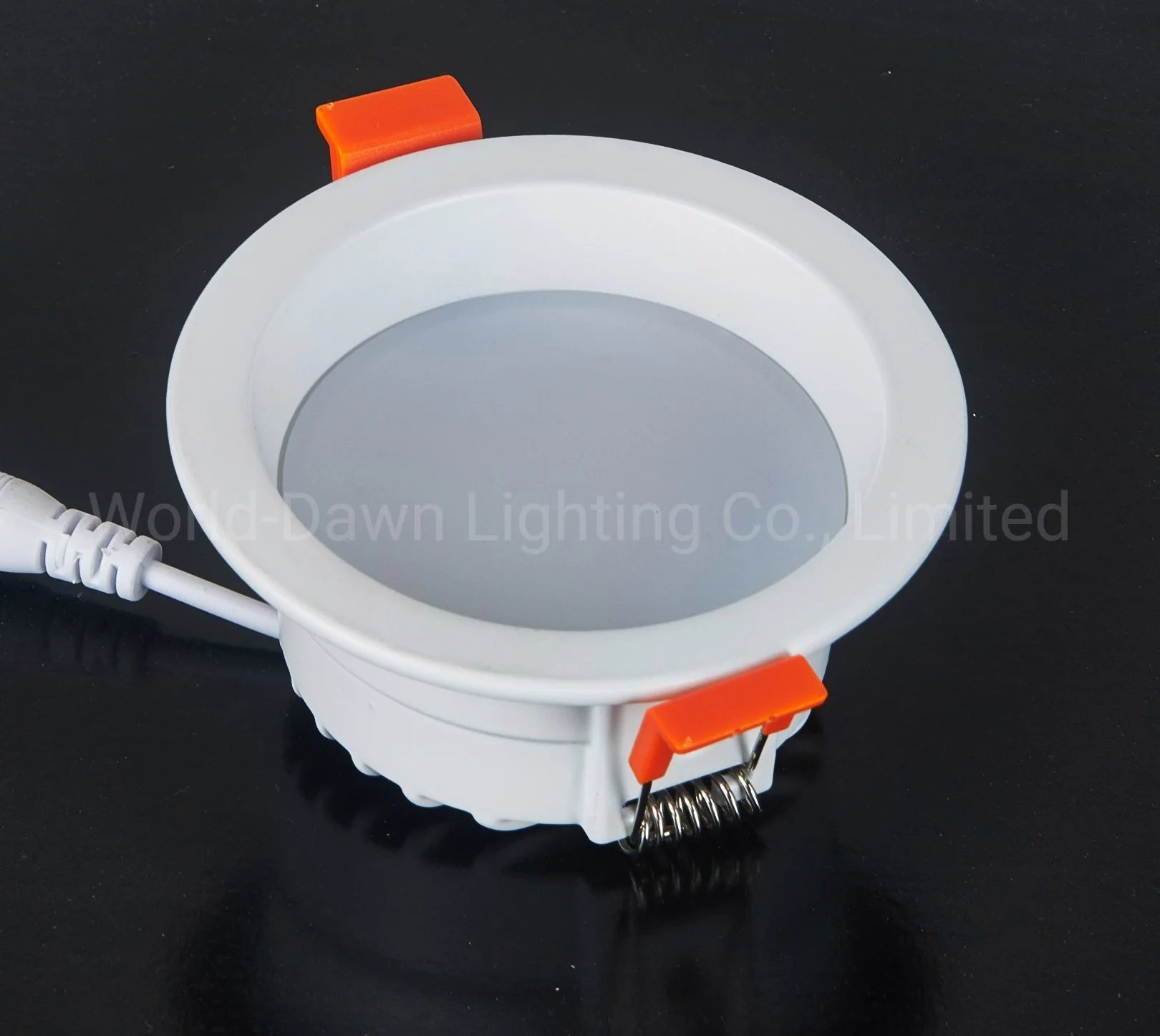

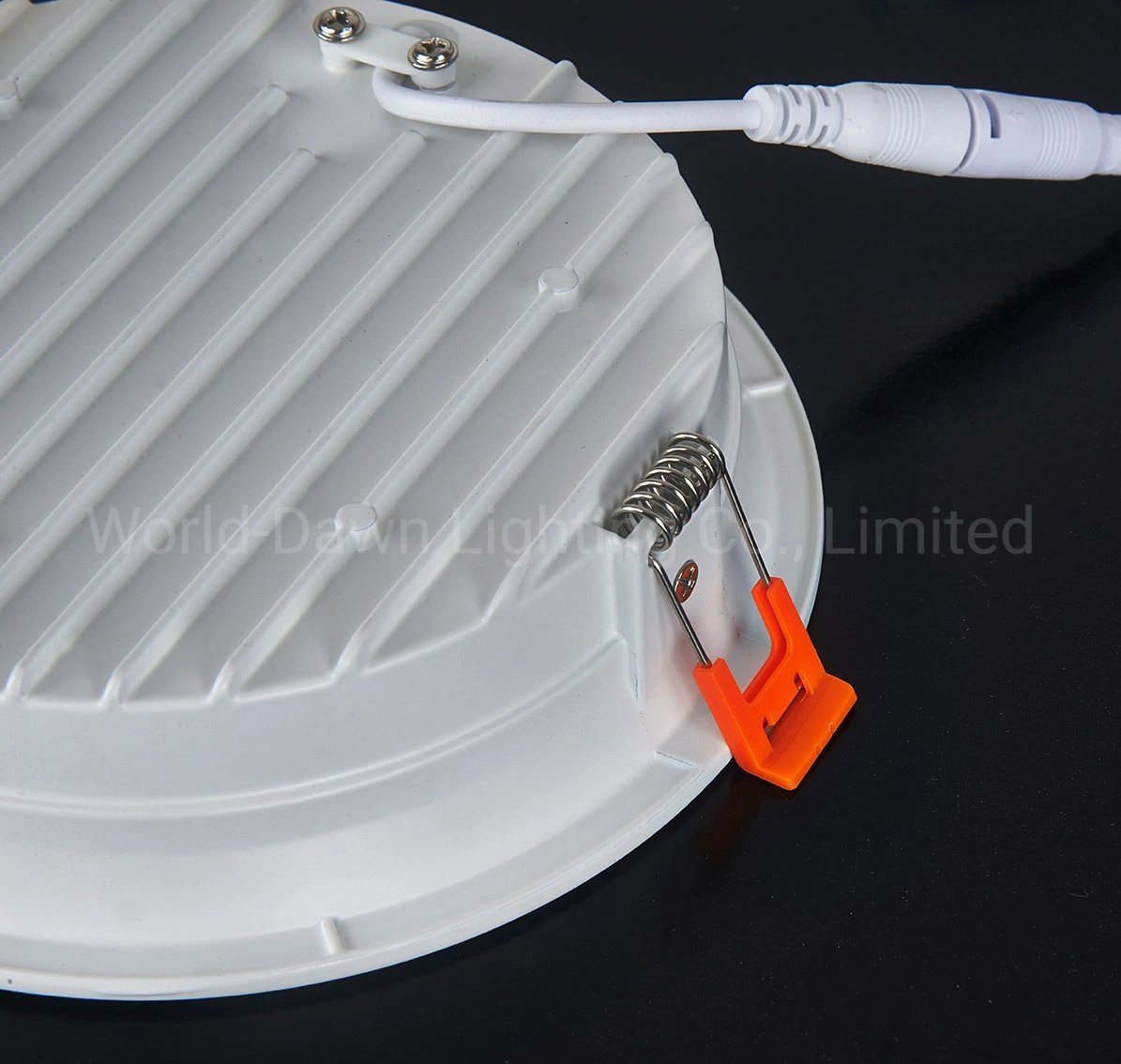

Recessed Bottom Emitting LED Panel Light
Model: WD-ZFCR-10W
| Port: | Zhongshan, China |
|---|---|
| Production Capacity: | 50000PCS/Month |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Money Gram |
| Light Source: | LED |
|---|---|
| Housing Material: | Aluminium, PMMA |
| Emitting Color: | White |
| Dimmable: | Without Dimmable |
| Appearance: | Round |
| Type: | Recessed |
Description
Model NO.
WD-ZFCR-10W
Base Material
Aluminum Diecasting + PMMA Diffuser
Certification
CE, RoHS
Voltage
85V-265V
Beam Angle
120°
Trademark
WORLD-DAWN
Transport Package
in Carton
Specification
φ 90*H40mm
Origin
Zhongshan, China
HS Code
9405409000

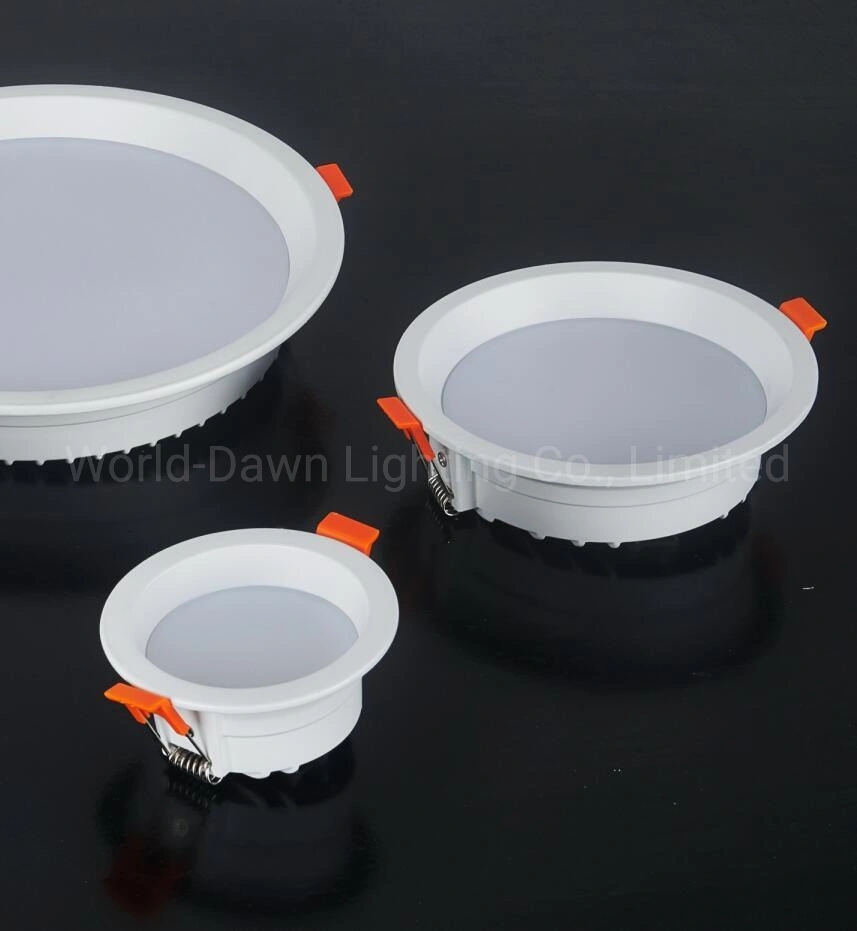

10W 18W 24W 30W are avialable
Fectures:
| Item No. | WD-ZFCR-10W |
| LED | 2835 SMD |
| Power | 10W |

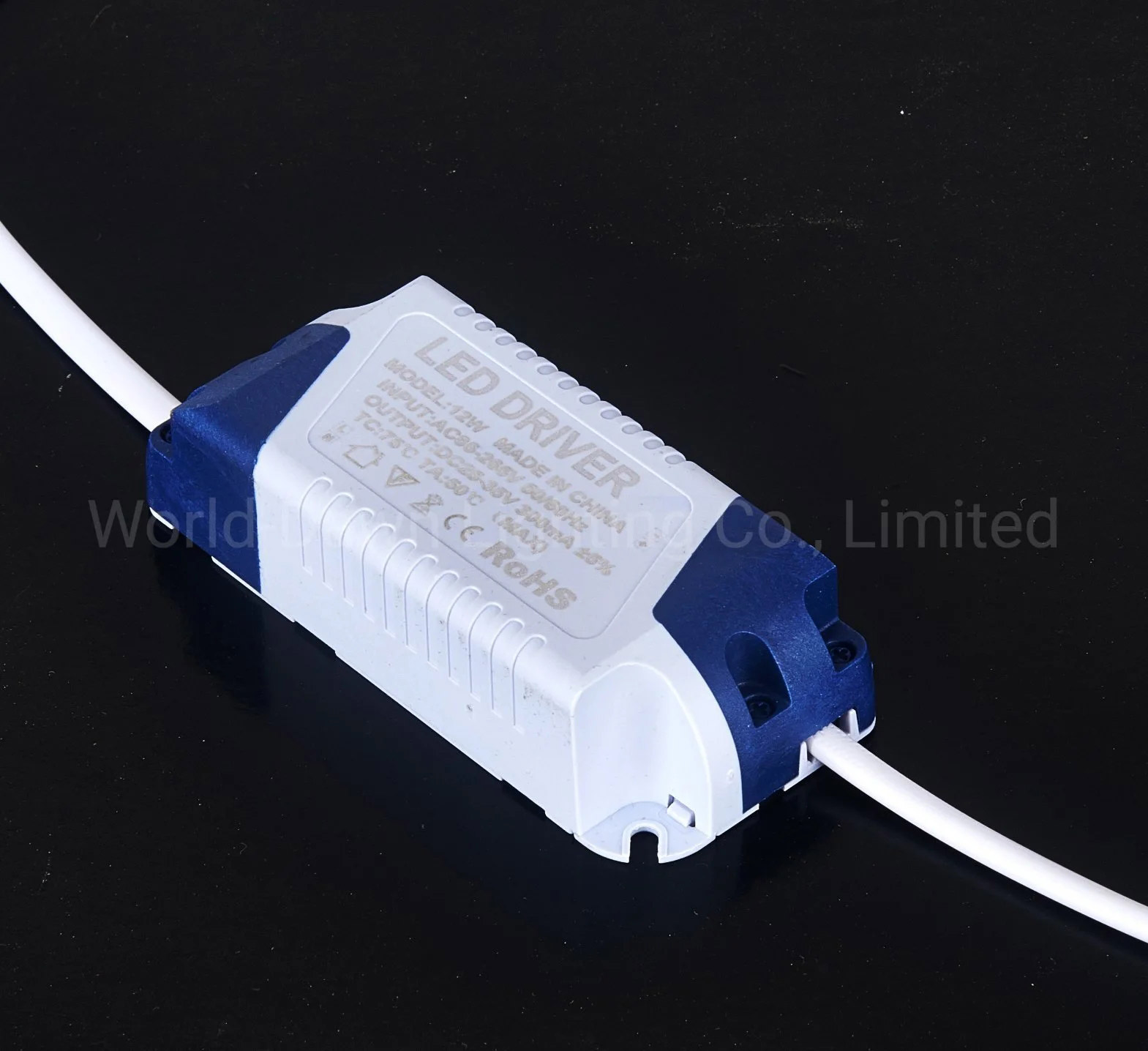

| Voltage Intputting (Isolated full power driver) | AC 85-265V |
| CRI / LM | 80 / ≥90 LM/W |
| Ring diameter | φ90*H40mm |
| Hole size | φ70mm |
| PF | >0.5 |
| Color /CCT | 3000K /4000K /6000K |
| Materials | Aluminum Diecasting + PMMA diffuser |
Advantages:
-Simple & Elegant appearance with more narrow edge.
-Surface with concave appearance good at anti-glare-Bottom emitting with CRI 80 and much higher LUMEN than side luminous at same power.
-High performance with lower price suitable for wholesales or projects market.
-Size: 12W/18W/24W/32W are available.
-2 years warranty
Application: Housing indoor use & Comercial indoor
