LED Panel Light
100 Pieces US $3-9.88/ Piece
Port: Zhongshan, China
Transport Package: Customized Packing / Neutro-Packing
Payment Terms: L/C, T/T, Western Union, Paypal
Light Source: LED
Housing Material: Aluminium
Emitting Color: White,Warm White
Dimmable: Without Dimmable
Appearance: Round, Square
Type: Recessed
Basic Info
2018 Panel Light -Recessed & Bottom Emitting Economy Version
Model No.: WD-BEP-R7W
Features:

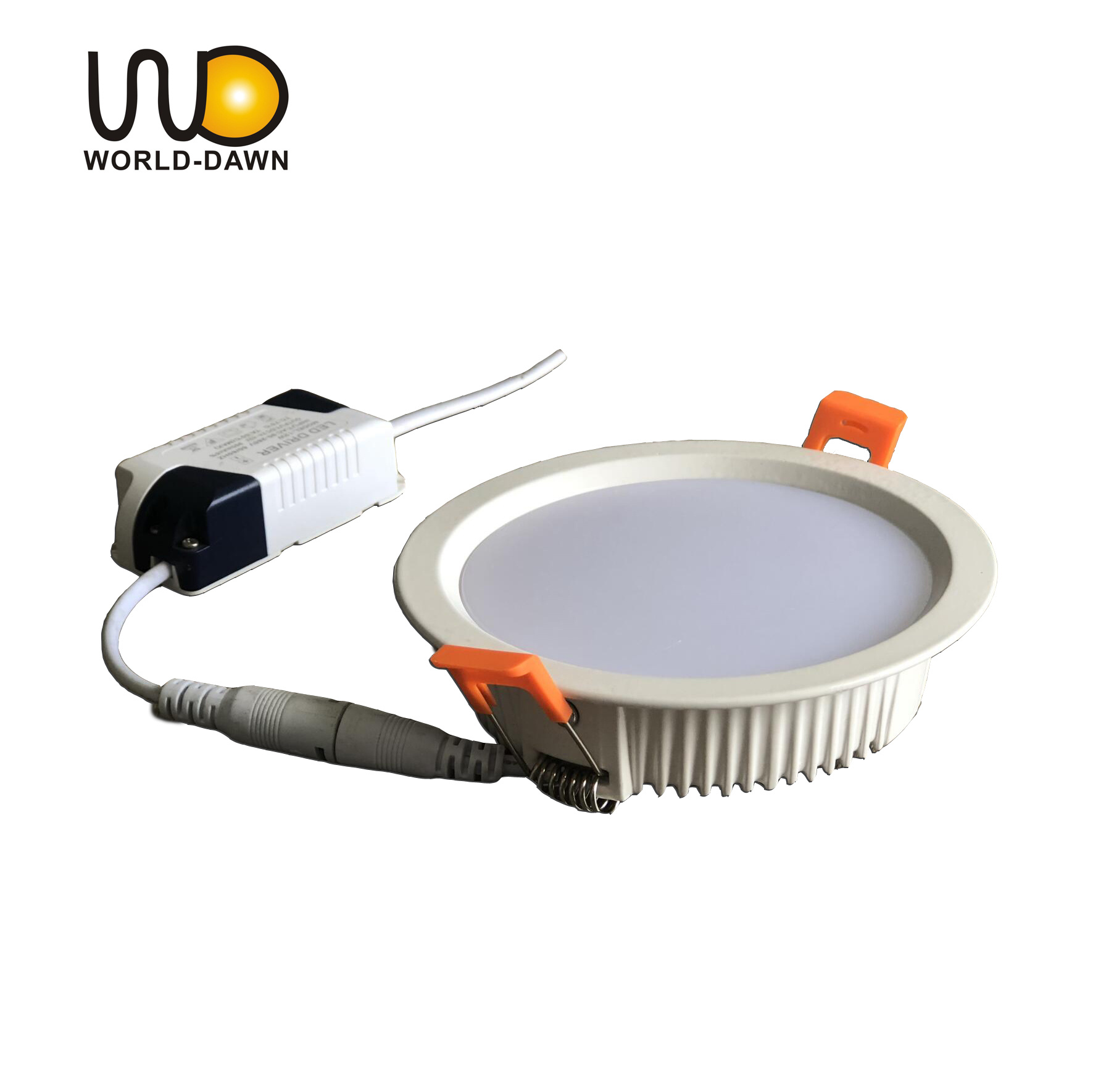

- Recessed LED panel downlight, small size to save space.
- Bottom emitting much higer than side luminous at same power.

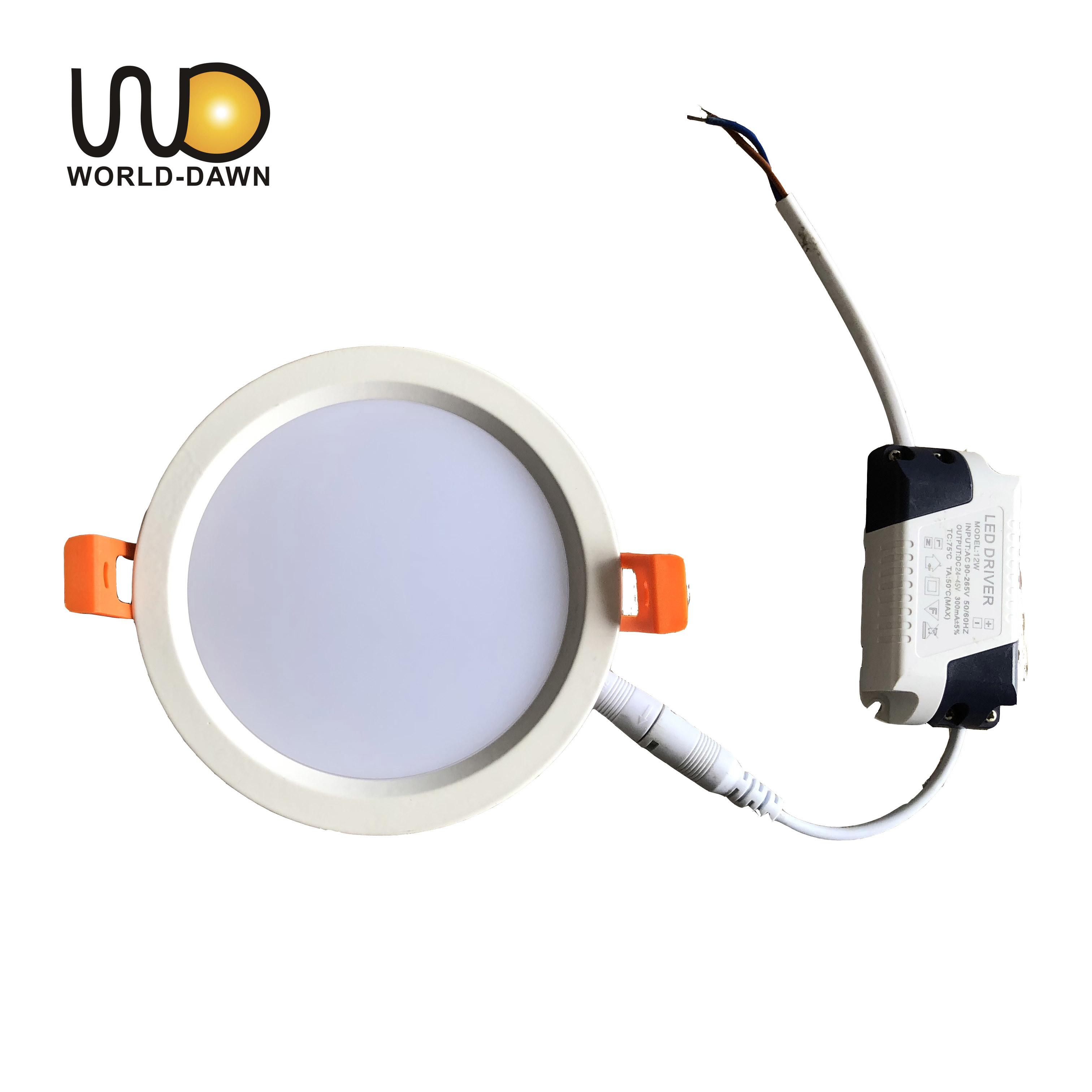

- Use constant current driver, no stroboflash.
- World-wide use voltage AC90-265V .
- Die casting aluminum housing, good heat dissipation.
- Replace regular side luminous type directly.
- PMMA Light Guide Plate, PMMA diffuser

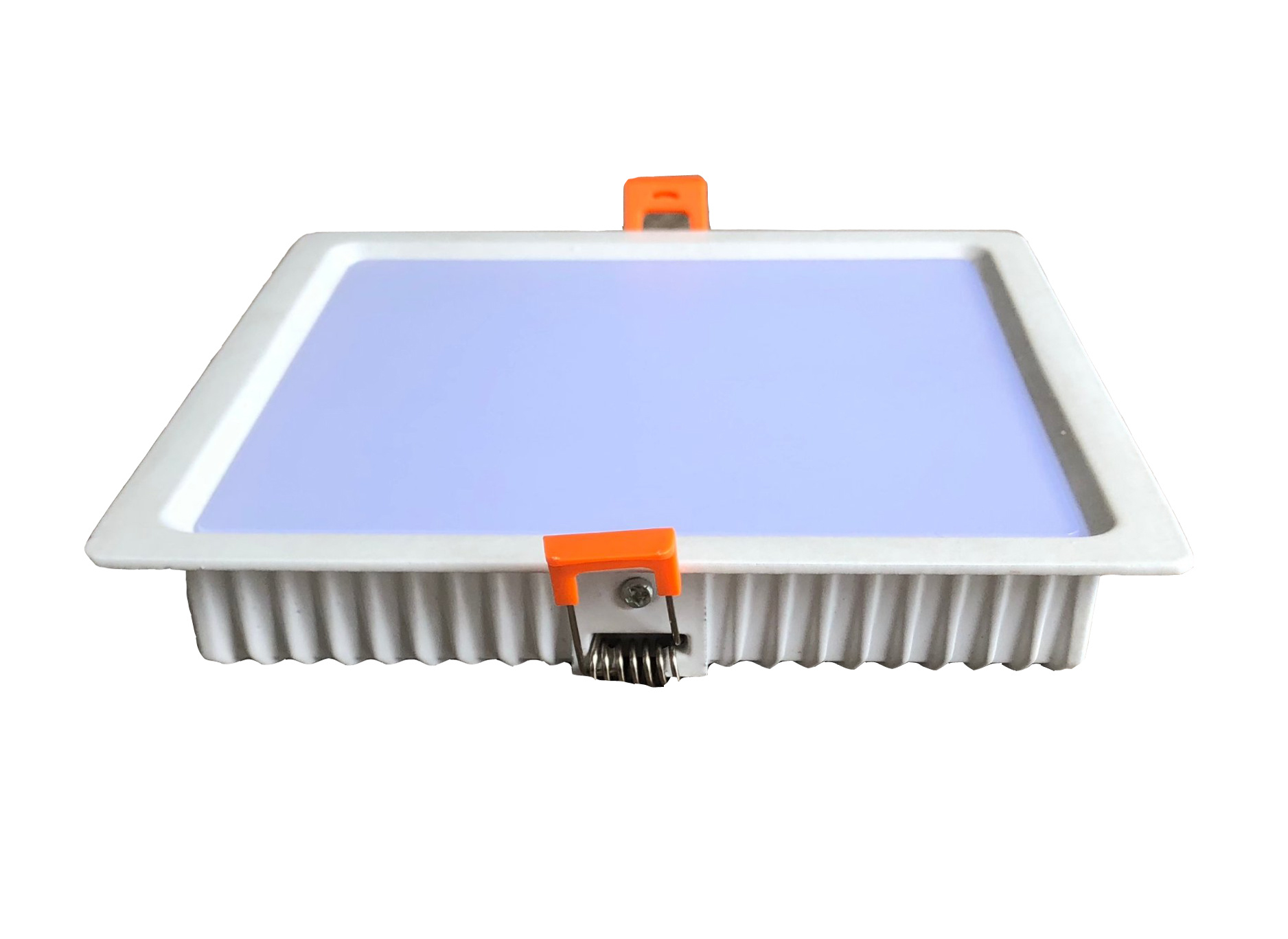

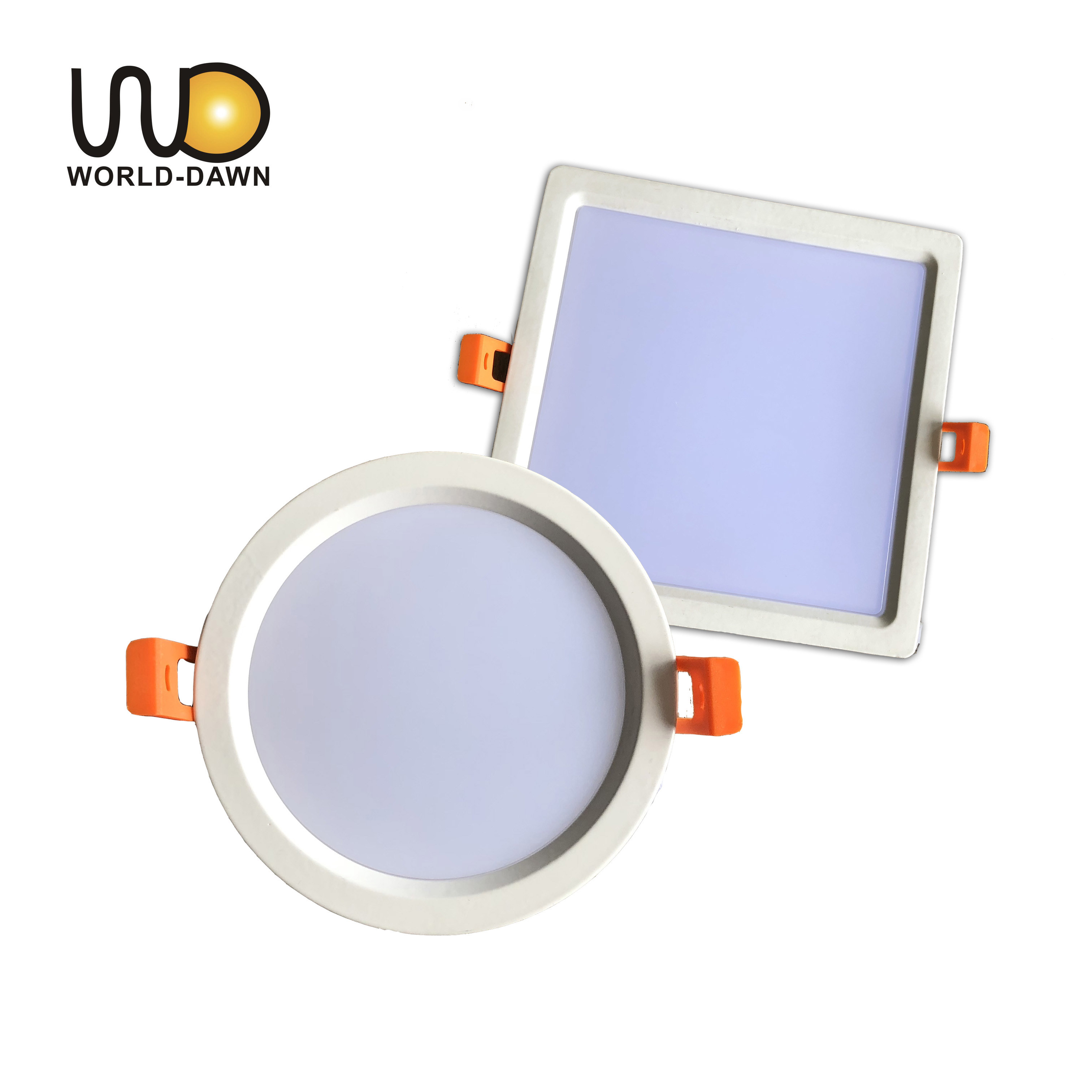

- Shape: Round, Square,
- Wattage: 7W , 16W, 24W, 32W
- Lumen: 100-110LM/W
Specification:
| Item No.: | WD-BEP-R7W | WD-BEP-R16W | WD-BEP-R24W | WD-BEP-R32W |
| Input voltage: | AC90-265V | AC90-265V | AC90-265V | AC90-265V |
| LED chip: | Epistar | Epistar | Epistar | Epistar |
| LED Qty: | 35 Pieces | 80 Pieces | 120 Pieces | 160 Pieces |
| Power: | 7W | 16W | 24W | 32W |
| CRI: | 75-85 | 75-85 | 75-85 | 75-85 |
| Lamp Size: | Φ90*30mm | Φ120*30mm | Φ170*30mm | Φ225*30mm |
| Hole size: | φ70mm | Φ100mm | Φ150mm | Φ205mm |
| Beam Angle: | 120° | 120° | 120° | 120° |
| Warranty | 2 years | 2 years | 2 years | 2 years |
| Material: | Aluminum | Aluminum | Aluminum | Aluminum |
| Shape | round, square | round, square | round, square | round, square |
| Interface: | Terminal | Terminal | Terminal | Terminal |
| Life: | > 15,000 hours | > 15,000 hours | > 15,000 hours | > 15,000 hours |
Applications:
Hotels.
Conference / Meeting rooms.
Factories & Offices.
Commercial Purposes.
Residential / Institution Buildings.
Schools, Colleges & Universities.
Supermarket Lighting.
